Maretron MPower 16-Channel DC Load Controller Module w/NMEA 2K w/o Connectors [CLMD16]
MPower® 16-Channel DC Load Controller Module with NMEA 2K without Connectors
For larger breakers and more circuits, the MPower® CLMD16 is a 16-Channel DC Load Controller Module. Four of the 16 breakers handle a maximum of 25 amps, and twelve breakers handle a maximum of 12 amps, with a total current capacity of 125 Amps. Additionally, circuits can be paralleled.
The CLMD16 also supports two H-Bridge reversing polarity circuits that can be used for loads such as engine hatches, passerelles, trim tabs, etc. The CLMD16 has 8 inputs for hard-wired switches that can be used to switch breaker states, or as inputs for other data, such as bilge alarms or hatch positions, etc. There are 3 inputs capable of monitoring tank levels.
The CLMD16 handles many DC load types such as lights, pumps, motors, and electronics. An added benefit of the CLMD16 is that it reports the current through each of the 16 breakers. This allows you to determine if loads are drawing too much or too little electrical current. This information can be used to report overcurrent faults and undercurrent conditions, such as burnt-out bulbs.
Features:
- NMEA 2000® Interface
- IP67 Rated
- Ignition Protected
- Opto-isolated from NMEA 2000®, eliminating potential ground loops
- Sixteen (16) dimmable Electronic Circuit Breakers (ECBs) for On/Off Control over NMEA 2000® network
- 4 breakers capable of carrying up to 25 Amps
- 12 breakers capable of carrying up to 12 Amps
- Individual breaker electrical current monitoring
- Breakers can have Power-Up states defined (ON, OFF, or previous states)
- Breakers can be locked against inadvertent actuation.
- Capacitive touch switches for local control of all loads
- All inputs and outputs are protected against short to Power and short to Ground
- Automatic ECB overcurrent shutdown
- Automatic ECB thermal shutdown (Overtemperature Protection)
- Eight (8) discrete digital input channels capable of sensing +ve or ground signals
- Two (2) resistive analog input channels
- One (1) 4-20mA current loop input channel
Applications:
- Remote control of navigation lights
- Remote control of boarding lights
- Burnt-out bulb alerts
- Control of area lights with dimming
Quick Guide (pdf)
Owner's Manual (pdf)
Lee's Sidewinder Bolt-In Outrigger Mounts, Lay-Down Version - Silver(Pair) [SW9300]
Sidewinder Bolt-On Outrigger Mount
Below top operation. Fully locked in Running and 80 degree out Trolling positions. Locks when handle is up or down. Rotates when handle is to the left or right. Fastest Lay-Down on the market. Automatically locks in position when raising or lowering the pole. No knobs to loosen or tighten. Just pull down the Ridged Collar and lower or raise the pole. No ball bearing to rust. Internal Delrin Bushings and Nylon Bearing Surfaces provide smooth operation and prevent metal to metal contact.
APEX® 19 VX MSI+ Chartplotter/Fishfinder with Transom Mount Transducer
The APEX 19 VX MSI+ CHARTPLOTTER provides the clearest sonar imaging on the sharpest multi-function display that anglers have ever seen. Industry-leading MEGA Imaging+ and Dual Spectrum CHIRP sonar come standard, with even more performance from a dedicated sonar channel for accessory 2D CHIRP transducers up to 2kW. See it all clearly with an 18.5" Full-HD touchscreen that provides a customized display of information from advanced network options like NMEA 2000®, HDMI In/Out, WiFi, and Bluetooth®. Add the power of the One-Boat Network™ to integrate the accuracy of Humminbird GPS charts, unrivaled boat control from Minn Kota, and reach new depths with wireless Cannon® downrigger control. The APEX Series is the kind of MFD that will take you fishing to a new level.
Features:
- Full HD Display with Cross Touch® interface: APEX delivers eye-popping detail with a 1920H x 1080V display. See the incredible detail of sonar and chart images that will ensure you never miss a thing. Control it all using the touchscreen or the keypad—it's up to you.
- Customized Experience: Utilize an intuitive user interface and sidebar menu that provide customizable settings and view combinations to make your fishing experience all your own.
- Dual Core Processor: Perform any task with speed and ease, thanks to the ultra-responsive interface and upgraded processing power.
- Industry-leading Humminbird sonar: Equipped with MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar to keep you on the fish. MEGA Imaging+ provides views up to 250' under and out to either side of your boat, and Dual Spectrum CHIRP shows exceptional 2D sonar with superior target separation and fish clarity.
- Dual Channel CHIRP Sonar: Dual sonar ports offer connection with any Humminbird sonar options, as well as a dedicated port for 2D CHIRP transducers up to 2kW.
- Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
- Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.
- AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.
- One-Boat Network Compatible: Many Humminbird models seamlessly integrate and communicate with Minn Kota and Cannon products to unlock more features and capabilities for anglers everywhere. Make more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.
- Dual Ethernet Ports: Build a powerful, professional-grade fishing system with dual Ethernet ports on APEX chartplotters. Easily network products without the need for an external network hub, allowing the connection of multiple control heads and Ethernet accessories like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.
- HDMI Compatible: See it all with independent HDMI In and HDMI Out ports on APEX. Connect and view accessory camera and video sources, as well as output to accessory displays for more viewing and rigging options.
- Bluetooth: Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird FishSmart App and display of smartphone notifications on your Humminbird.
- NMEA 2000 networking built in: Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking. Additionally, APEX is compatible with CZone® Contact 6, Contact 6 Plus, and digital switching devices.
- Includes control head, transom mount transducer, mounting hardware, power cable, and gimbal mounting bracket.
- Product comes with a 2-Year Limited Warranty
Specifications:
- Cartography Brand: Humminbird/Navionics
- Included Transducer: XM-14-HW-MSI-T
- Screen Size: 19"
- Touchscreen: Yes
- Transducer Included: Yes
- Box Dimensions: 12"H x 17"W x 27"L WT: 28.4 lbs
- UPC: 082324061653

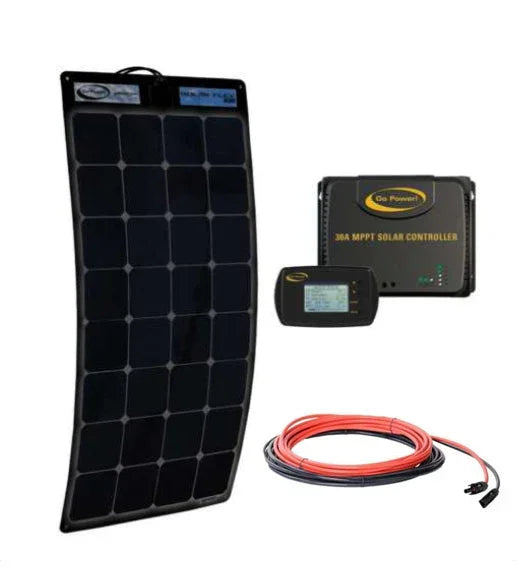

Go Power! Solarflex Eclipse 190W Kit - GP-ECLIPSE-FLEX-190
NOTE: GoPower has changed their packaging for these products, so they are shipped either oversize ground service or freight service, standard shipping charges are $400. Contact us for a freight quote that may be lower.
The Go Power! SolarFlex Eclipse 190W + 30A MPPT Controller Solar Kit, the solution for all your solar charging needs. Whether you're an RV enthusiast, a dry-camper, or just looking for a reliable source of power, this solar kit has got you covered.
With its advanced MPPT charging technology, the SolarFlex Eclipse maximizes your solar conversion efficiency to 98%, making it one of the most efficient solar chargers on the market. And with its Bluetooth enabled remote, you can easily view and change essential battery stats from your handheld device, making it a breeze to monitor your power usage.
This powerful 190-watt solar panel kit is easy to install and expandable, making it perfect for all your charging needs. And with its 30A MPPT Controller, you can charge your batteries faster and maximize your solar performance.
But that's not all, this kit also comes with a 25-year power output warranty, ensuring that your SolarFlex Eclipse will be providing you with reliable power for years to come. So why wait? Get your hands on the Go Power! SolarFlex Eclipse 190W + 30A MPPT Controller Solar Kit today and start enjoying the freedom of off-grid living.
Kit Features
- Expandable to 3000-watts of solar with stackable MPPT controllers
- Black SolarFlex 190 watt, 9.89 amp solar module with ETFE top-sheet
- Panel dimensions: 55.98 x 27.2 x 0.1 in 5-year power output panel warranty
- 30 amp, stackable MPPT, RV-C compatible solar controller
- Bluetooth enabled remote
- Includes 25’ solar output cables and mounting hardware
SPECS:
| Solar Cell Type | Monocrystalline |
|
Output Power
|
190 W
|
|
Rated Current
|
9.89 A |
|
Rated DC Voltage
|
20.1 V
|
| Open-Circuit Voltage | 23.4 V |
| Connectivity | Solar Branch Connectors |
| Solar Controller | 30 A MPPT, multi battery option, 4 stage charging, with optional LCD Bluetooth remote |
| Materials | Black Laminated TPT Back Sheet with ETFE Top Layer |
| Certifications | CE |
| Panel Dimensions | 55.98"L x 27.2"W x 0.1"D |
|
Weight
|
8.3 lbs
|
|
Warranty
|
5 years power output (module) / 5 years (controller)
|
Documents:
Spec Sheet
Product Manual

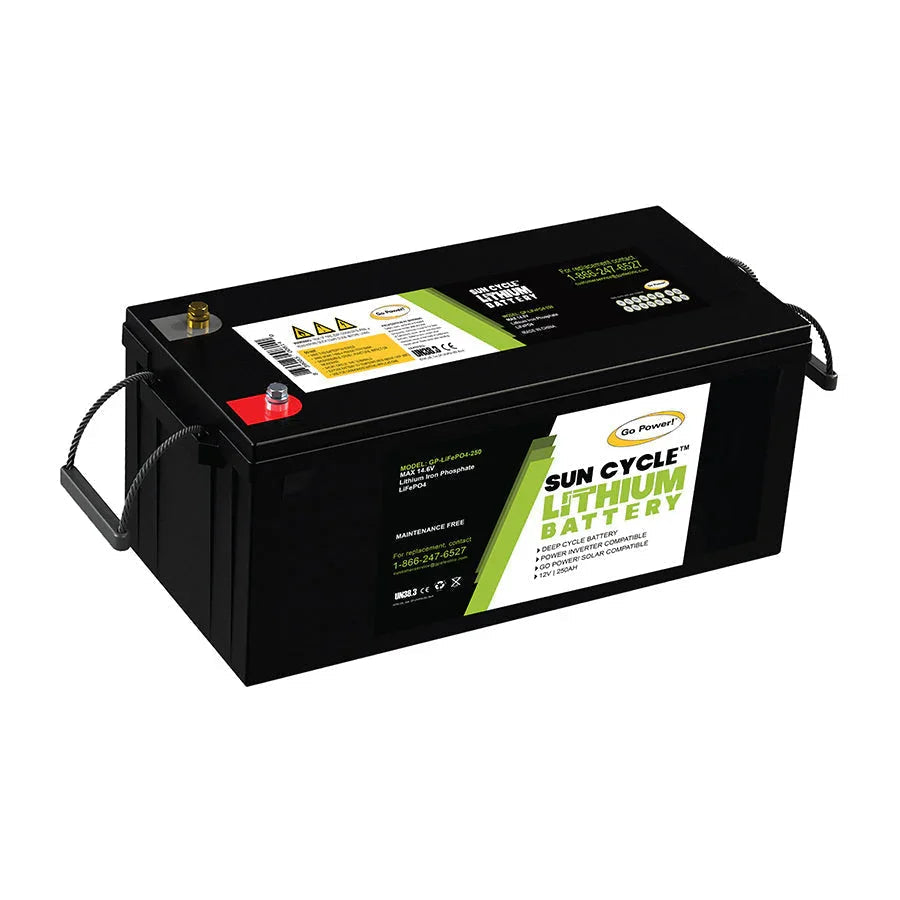

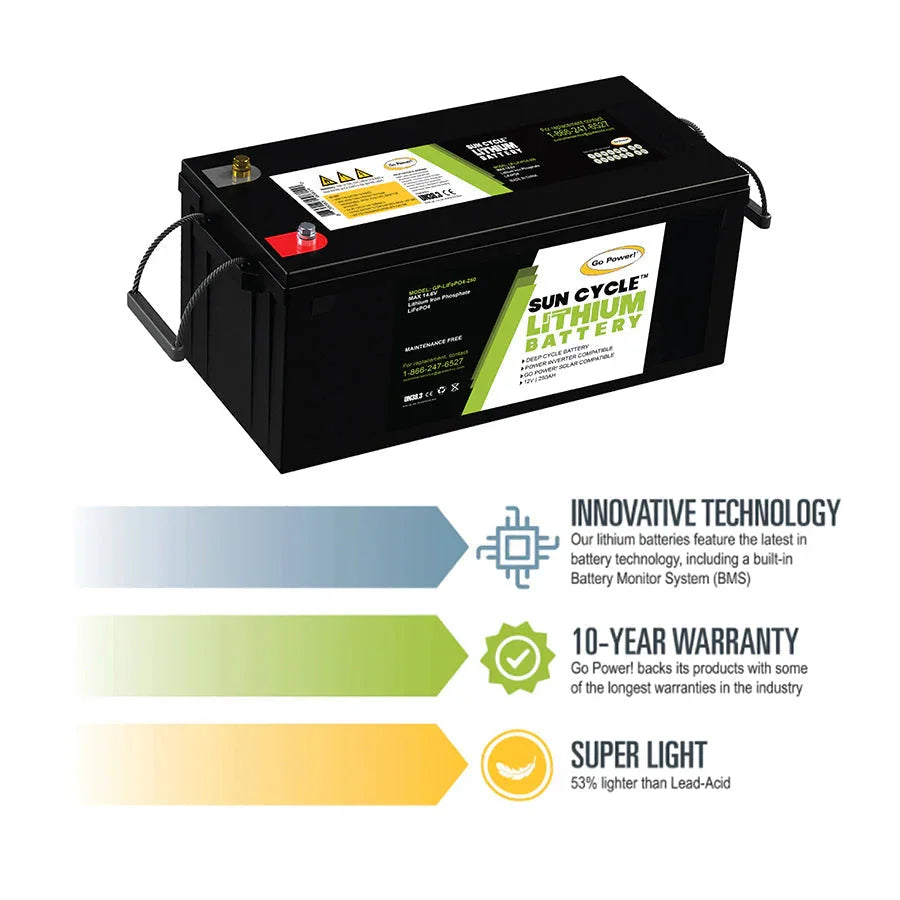

The Go Power! 250Ah Lithium Iron Phosphate Solar Battery - the ultimate off-the-grid companion for your RV adventures. Say goodbye to the heavy, clunky traditional batteries and hello to the lightweight, efficient, and high-powered performance of lithium technology.
- Compatible with all Go Power! solar, inverters, and charge controllers
- Max power capacity: almost double the power of regular batteries
- Quick charging time
- Built-in Battery Management System (BMS) for safety and long battery life
- Over and under voltage protection, temperature protection, charge and discharge over current protection and short circuit protection.
- 10-year warranty
The Go Power! 250Ah Lithium Iron Phosphate Solar Battery is built for solar and is perfect for those who want to take their RV off-the-grid for longer periods of time. The battery is also equipped with a BMS that ensures safety and long battery life by constantly monitoring battery performance, internal temperature, and other critical elements required for safe functioning battery.
SPECS:
- Dimensions: 20.5"L x 9.5"W x 8.8"H
- Weight: 80 lbs
- Composition: Lithium Iron Phosphate
- Nominal Voltage: 12.8 V
- Rated Capacity: 250Ah
- Nominal Operating Temp: 77 ±5 °F
Don't let a dead battery ruin your next camping trip, upgrade to the Go Power! 250Ah Lithium Iron Phosphate Solar Battery and enjoy the freedom of off-grid living with peace of mind.

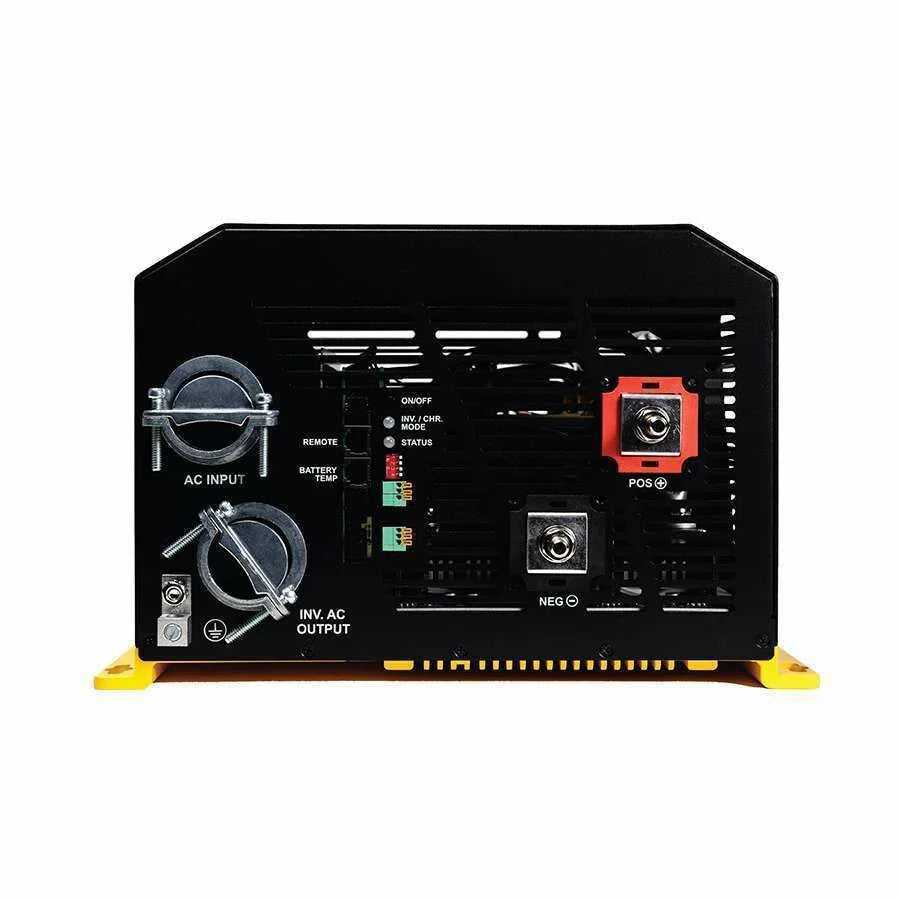

Go Power! 2000W Pure Sine Wave Inverter/Charger - GP-IC-2000-12-PKG
Introducing the Go Power! IC Series 3000-Watt Inverter Charger, the ultimate power solution for your off-grid adventures. This little powerhouse packs a punch with its 3000-watt output, making it the perfect choice for powering your RV, boat or cabin.
But wait, there's more! Not only does this bad boy provide a steady stream of AC power, but it also doubles as a battery charger and transfer switch. Talk about multi-tasking!
Features:
- Compact footprint saves space and simplifies installation
- Two 50-amp legs allow for full use of a 100-amp shore power service (240V)
- Passes through up to 12,000 watts of power
- Compatible with all 30-amp services
- 3-in-1 system: inverter, battery charger and automatic transfer switch
- Lightweight and easy to install
Don't let your off-grid adventures be limited by a lack of power. With the Go Power! IC Series 3000-Watt Inverter Charger, you'll have the power you need, when and where you need it. Plus, with its compact and lightweight design, it's easy to take it with you wherever you go. So, don't wait, get your hands on the Go Power! IC Series 3000-Watt Inverter Charger today and power up your next adventure!
|
Specs: |
||
|
Output Power (up to 40ºC) |
3000W |
|
|
Surge Power (100 milliseconds) |
6000W |
|
|
Surge Power (5 seconds) |
4800W |
|
|
Peak Output Current |
52A |
|
|
Continuous Output Current |
25A |
|
|
Output Voltage |
115 VAC |
|
|
Output Frequency |
60 Hz ±0.1Hz |
|
|
Output Waveform |
Pure Sine Wave |
|
|
Efficiency (Peak) |
90% |
|
|
DC Input Voltage Range |
9-17 VDC |
|
|
Maximum Continuous DC Input Current |
400 ADC |
|
|
No Load Power Consumption |
Normal Mode:25W, Sleep Mode: <5W |
|
|
AC Connections |
Split Phase In/Dual Out, Dual In/ Dual Out |
|
Temperature |
-20˚C to 40˚C (40˚C – 60˚C output derates) |
|
|
Humidity |
0 to 95% RH non condensing |
|
|
Dimensions |
13.7”L x 12.6”W x 8.07”H |
|
|
Weight |
49.8 lbs |
|
|
Regulatory and Safety Specifications |
UL certified to 458 & 1741 (with Marine Supplement) and to CSA 22.2 No. 107.1-01 FCC Path 15, Class B |

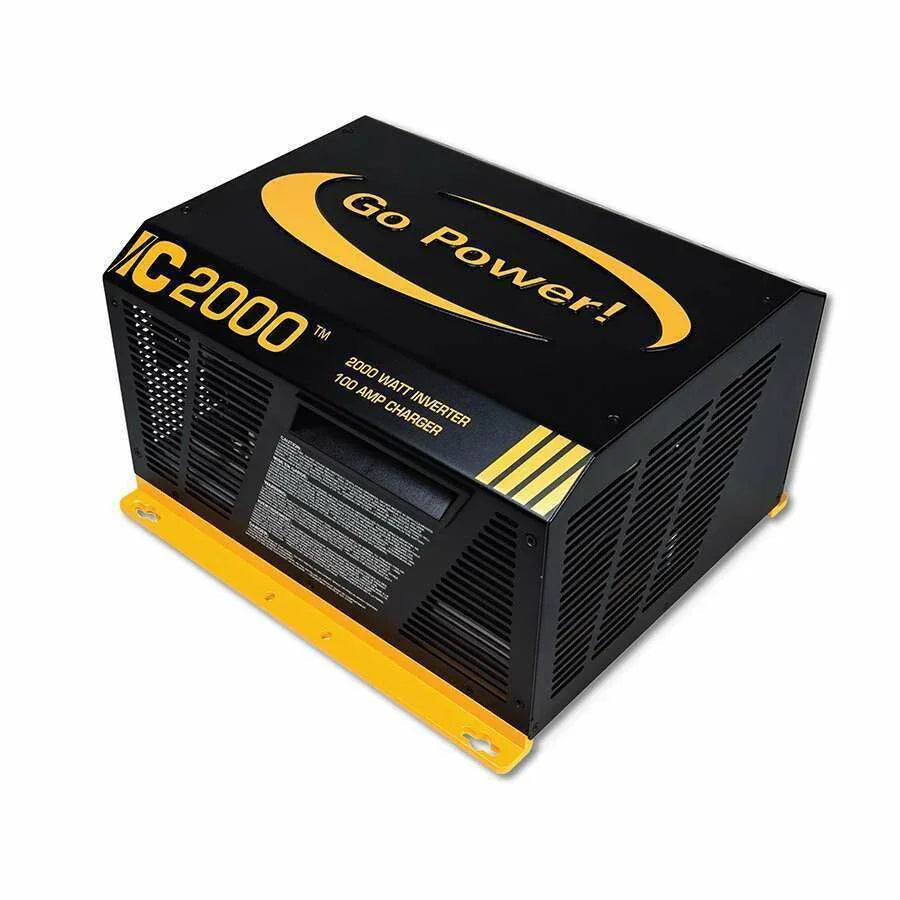

Go Power! GP-IC-2000-12-PKG 2000W Pure Sine Wave Inverter/Charger Features:
- 2000 watt pure sine wave inverter; 3400 watt surge (5 seconds)
- High inverter efficiency – 90%
- 100 amp battery converter/charger
- 100 amp automatic transfer switch (50 amps per leg at 120V AC)
- Built-in handles offer easier handling during installation
- Power factor corrected
- Industry-standard protection features
- Meets UL 1741 and UL 458 with marine supplement
- 3 year warranty
Go Power! GP-IC-2000-12-PKG 2000W Pure Sine Wave Inverter/Charger Documents:
Go Power! GP-IC-2000-12-PKG 2000W Pure Sine Wave Inverter/Charger Owners Manual

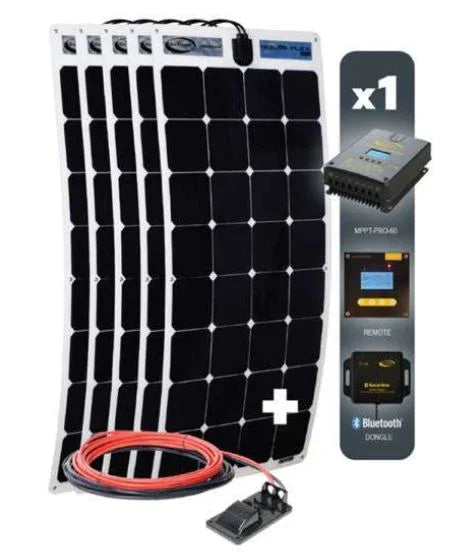

Go Power! 550 Watt Flexible Solar Kit
The Go Power! 550 Watt Flexible Solar Kit is our largest Flex Kit. 550 Watts of solar power paired with a 60AMP MPPT Pro Solar Controller for your RV.
Perfect for RVs and boats, its flexible design can conform to almost any surface. The panels are only 3 mm thick, making them easy to install. The thin, lightweight design provides a low profile, which is aesthetically pleasing and more aerodynamic than traditional rigid solar modules. The solar panels are durable, allowing a bend of up to 30°, providing you with a long-term solution to your solar power needs.
The high-efficiency monocrystalline cells produce more power per square foot than any other panel on the market and with a 5-year warranty.
Key benefits:
Avoids custom mounts (110 and 55-watt modules curve up to 30 degrees)
Can be affixed with adhesive or screws
Has a durable surface
Measures less than 1/8” (3 mm) thick
Is ideal for lightweight RVs (modules are 82% lighter)
5-year solar module power output warranty
The sealant/adhesive required will depend on the roof membrane material and is not included in the Solar Flex kit. Use an appropriate sealant as recommended by your RV dealer or manufacturer.

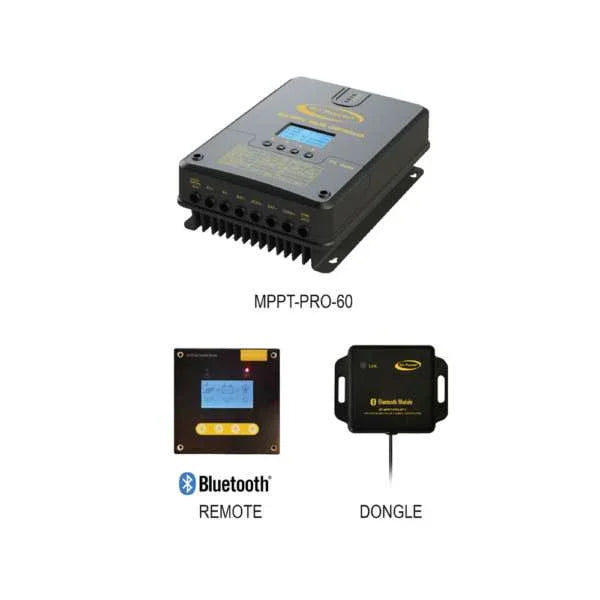

Kit Includes:
550 watts / 31.55 amps solar charging kit
60-amp MPPT Solar Controller
MPPT Digital Remote Display
Bluetooth Wireless Technology Dongle
1 x GP-CEP-25 – 25’ Cable Entry Plate with 25’ of cable
Mounting hardware (4 x GP-MH-4-KB)
Documents:
User Manual
Spec Sheet
Controller Manual

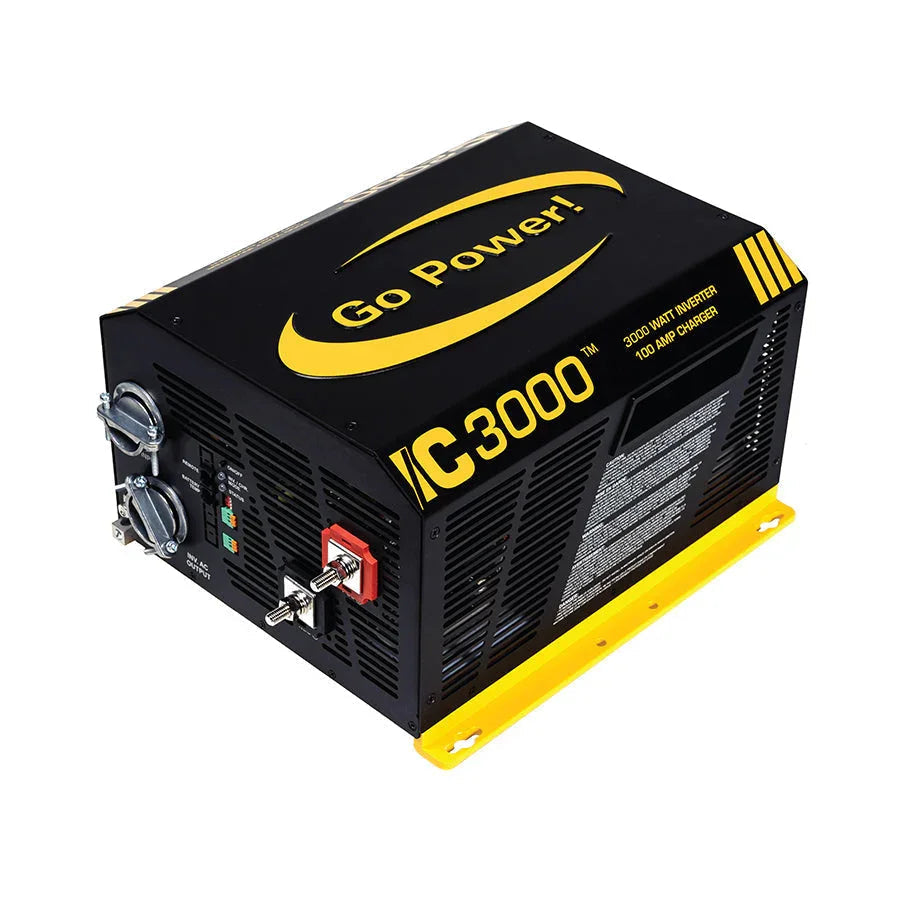

Go Power! IC Series 3000-Watt Inverter Charger
Introducing the Go Power! IC Series 3000-Watt Inverter Charger, the ultimate power solution for your off-grid adventures. This little powerhouse packs a punch with its 3000-watt output, making it the perfect choice for powering your RV, boat or cabin.
But wait, there's more! Not only does this bad boy provide a steady stream of AC power, but it also doubles as a battery charger and transfer switch. Talk about multi-tasking!
Features:
- Compact footprint saves space and simplifies installation
- Two 50-amp legs allow for full use of a 100-amp shore power service (240V)
- Passes through up to 12,000 watts of power
- Compatible with all 30-amp services
- 3-in-1 system: inverter, battery charger and automatic transfer switch
- Lightweight and easy to install
Don't let your off-grid adventures be limited by a lack of power. With the Go Power! IC Series 3000-Watt Inverter Charger, you'll have the power you need, when and where you need it. Plus, with its compact and lightweight design, it's easy to take it with you wherever you go. So, don't wait, get your hands on the Go Power! IC Series 3000-Watt Inverter Charger today and power up your next adventure!
Features
- 3000 watt pure sine wave inverter; 4800 watt surge (5 seconds)
- High inverter efficiency - >90%
- 125 amp battery converter/charger
- 100 amp automatic transfer switch (50 amps per leg at 120V AC)
- Built-in handles offers easier handling during installation
- Industry standard protection features
- Meets UL 458 with marine supplement
- 3 year warranty
|
Specs: |
||
|
Output Power (up to 40ºC) |
3000W |
|
|
Surge Power (100 milliseconds) |
6000W |
|
|
Surge Power (5 seconds) |
4800W |
|
|
Peak Output Current |
52A |
|
|
Continuous Output Current |
25A |
|
|
Output Voltage |
115 VAC |
|
|
Output Frequency |
60 Hz ±0.1Hz |
|
|
Output Waveform |
Pure Sine Wave |
|
|
Efficiency (Peak) |
90% |
|
|
DC Input Voltage Range |
9-17 VDC |
|
|
Maximum Continuous DC Input Current |
400 ADC |
|
|
No Load Power Consumption |
Normal Mode:25W, Sleep Mode: <5W |
|
|
AC Connections |
Split Phase In/Dual Out, Dual In/ Dual Out |
|
Temperature |
-20˚C to 40˚C (40˚C – 60˚C output derates) |
|
|
Humidity |
0 to 95% RH non condensing |
|
|

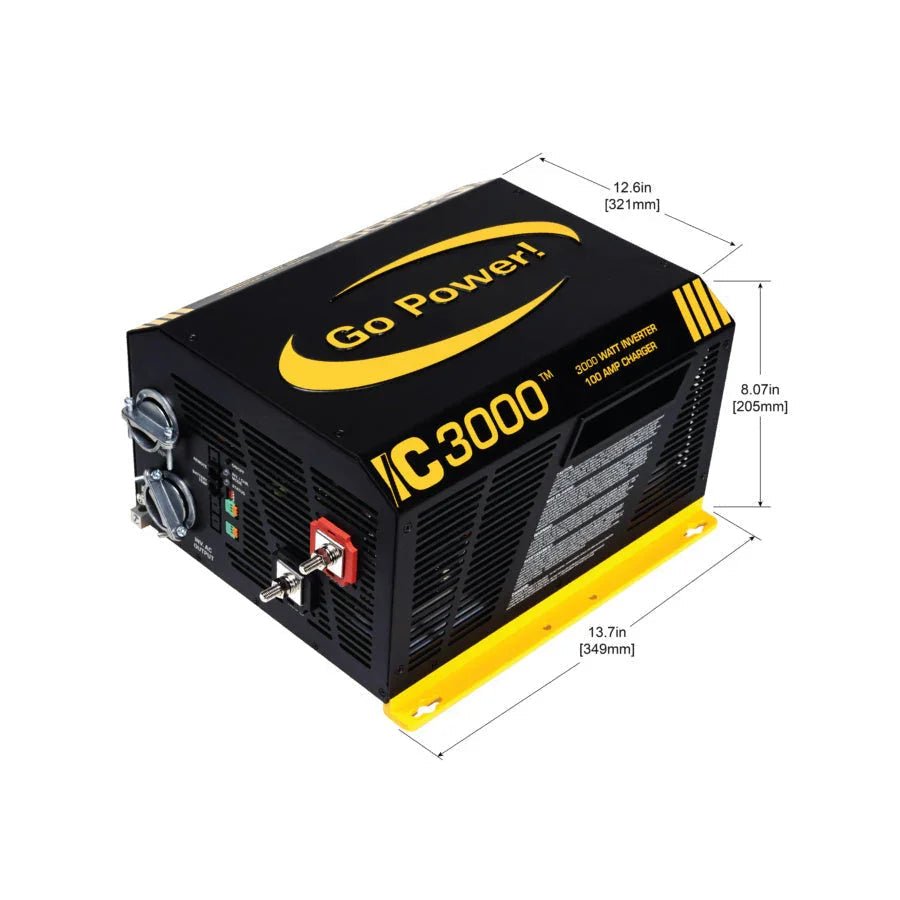

Dimensions |
13.7”L x 12.6”W x 8.07”H |
|
|
Weight |
49.8 lbs |
|
|
Regulatory and Safety Specifications |
UL certified to 458 & 1741 (with Marine Supplement) and to CSA 22.2 No. 107.1-01 FCC Path 15, Class B |
