T-H Marine ATLAS EDGE 6" Set Back Hydraulic Jack Plate - Heavy Duty - Black [AHJE-6VHD-B-DP]
ATLAS™ EDGE 6" Set Back Hydraulic Jack Plate - Heavy Duty - Black
- HYDRAULIC RISE: 5.75”
- TOTAL RISE: 8.25” - 9.75”
- WEIGHT LIMIT: 810 lbs
- HP: 450 max
ATLAS™ EDGE Jack Plate Lifted by Power-Pole®, the next generation of the best-selling ATLAS™ line. Built for anglers who demand more from their equipment, the ATLAS™ EDGE delivers an all-new level of precision, performance, and control – with smarter features designed to make every second on the water count.
Smarter Controls, Seamless Experience
At the heart of the new ATLAS™ EDGE system is One-Touch Height Control, allowing users to instantly switch between three customizable presets for takeoff, running, and fishing / trailering. With just a single press, boaters can recall their ideal height positions, eliminate guesswork, and maximize efficiency.
The Adjustable Speed Settings (Slow, Medium, Fast) offer tailored performance for varying water conditions and preferences, while the Auto Height Mode enables effortless operation — simply tap once to move to one of three custom saved heights; double-tap to get there at full speed.
Visibility Meets Versatility
Day or night, the ATLAS™ EDGE stays clear and easy to use thanks to Auto Display Brightness, which adjusts the screen’s visibility based on ambient light. Whether under direct sun or pre-dawn launches, the system delivers information without distraction.
Powered by Innovation
Designed in collaboration with Power-Pole®, the ATLAS™ EDGE now features a high performance brushless motor, offering quiet operation, ultra-fast lift speeds, and zero maintenance reliability.
Product advantage: Smarter. Faster. Smoother
With its innovative blend of intelligent presets and adaptive speed, the ATLAS™ EDGE sets a new standard for performance on the water. Whether you’re launching, cruising, or dialing in the perfect fishing position, it’s all just one touch away.
Brochure (pdf)
Pro-Series Horizontal 700 Windlass - 12V
Praised by professionals worldwide, the horizontal Pro-Series is a shining example of Lewmar's commitment to providing quality products for boats. It's DIY-ready, easy to install, and housed in 100% 316 stainless steel, making it well protected and durable and with push-button control and a built-in manual emergency recovery system.
Anchoring has never been easier.
Features:
- Powerful motor providing fast line speed
- Manual emergency recovery equipped
- Convenient above-deck installation
Technical Specifications:
- Material - Stainless Steel
- Maximum Pull - 700lbs
- Maximum Line Speed - 82'/min
- Maximum Chain Size - 1/4"
- Maximum Rope Size - 1/2"
- Power - 12 V
- Maximum Boat Length - 32'
- Mounting Position - Horizontal
In the Box:
- Windlass
- Instruction manual
*Sold as an Individual
Specifications:
- Chain - Diameter (Inches): .25
- Freefall: Yes
- Rope Diameter (Inches): .50
- Vertical/Horizontal: Horizontal
- Box Dimensions: 4"H x 4"W x 18"L WT: 20 lbs
- UPC: 743683306495
Owner's Manual (pdf)
SLEIPNER SXP EXTERNAL STERN THRUSTER | 12V PROPORTIONAL | 80KG/176LB | SXP80/185T-12V
The ultimate space-saving external stern solution—compact, ultra-efficient, and engineered for standard 12V convenience with precision variable speed control. The Sleipner Side-Power SXP80 (SXP80/185T-12V) is a high-performance external stern thruster designed for vessels between 35 and 48 feet where internal bilge space is non-existent or hull configurations make a traditional tunnel installation impossible. Delivering a robust 80 kg (176 lbs) of lateral thrust, this fully sealed system mounts externally directly onto your transom, keeping your interior storage entirely clear.
Equipped with factory-standard S-Link™ Proportional Control, this system replaces old-school, full-blast "on/off" thrusters with smooth, variable-speed throttle control. It hooks directly into your existing 12V house or thruster battery banks, allowing you to feed in precisely the right amount of power to counteract crosswinds and strong currents—making tight slip entries completely stress-free.
Key Features:
-
True Proportional Power (S-Link™): Variable speed capability gives you exact, metered power. Feed in a gentle, whisper-quiet nudge for minor docking corrections or dial it up to full throttle for maximum command in heavy weather.
-
12V Drop-In Compatibility: Connects directly into standard 12V marine electrical systems, delivering serious heavy-duty docking muscle without requiring complex voltage step-up series or independent 24V battery banks.
-
Hermetically Sealed External Pod: The motor, mechanical drive, and internal electronics are housed in a rugged, fully sealed, ignition-protected (IP) composite casing. This makes it completely waterproof and perfectly safe for installation near gasoline engines or fuel vapor zones.
-
Space-Saving Transom Mount: Eliminates the need to sacrifice valuable internal locker space or modify complex structural components inside the bilge. By mounting externally at the absolute furthest point aft, it maximizes mechanical pushing leverage.
-
Hydrodynamically Streamlined Cowl: The external housing is carefully sculpted to minimize drag and turbulence while underway, ensuring your cruising speed and fuel efficiency remain unaffected.
-
Twin Q-Prop™ 5-Blade Propellers: Outfitted with aerodynamically skewed composite 5-blade twin propellers that deliver up to a 75% reduction in cavitation noise while maximizing raw water-flow thrust.
Specifications:
-
Part Number: SXP80/185T-12V
-
Thrust Power: 80 kg (176 lbs) at 10.5V / 96 kg (212 lbs) at 12V
-
Typical Vessel Size: 35 to 48 Feet (10 to 15 meters)
-
System Voltage: 12V DC
-
Tunnel Diameter: 185 mm (7.3'')
-
Control System: S-Link™ Digital Bus (Variable Speed)
-
Propulsion Type: Twin Counter-Rotating 5-Blade Q-Prop™
Pro Tip: External stern thrusters provide far superior leverage compared to internal tunnel stern thrusters because they are positioned further away from the boat's center of flotation (pivot point). This extended distance means the 80 kg of thrust on the SXP80 works significantly harder to swing your stern exactly where you want it.

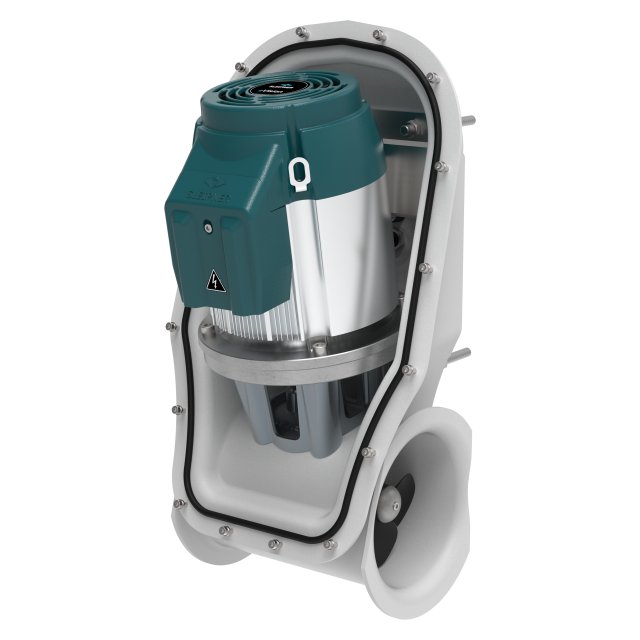

SLEIPNER SXE100 EXTERNAL STERN THRUSTER | 24V PROPORTIONAL | 100KG/220LB | SXE100/185T-24V
The ultimate external stern docking solution—compact, ultra-efficient, and engineered with precision variable speed control. The Sleipner Side-Power SXE100 (SXE100/185T-24V) is a high-performance external stern thruster designed for vessels where internal space is at a premium or hull configurations make a standard tunnel installation impossible. Delivering a robust 100 kg (220 lbs) of thrust, this unit mounts externally directly onto the transom.
Equipped with factory-standard S-Link™ Proportional Control, this system allows you to feed in precisely the right amount of power to counteract crosswinds and strong currents—upgrading your boat from old-fashioned, full-blast "on/off" thrusters to smooth, whisper-quiet throttle precision.
Key Features:
-
True Proportional Power (S-Link™): Variable speed capability gives you exact, metered power. Apply a gentle, quiet nudge for minor corrections or dial it up to full throttle for maximum command in heavy weather.
-
External Transom Mount Design: Perfect for boats with limited internal space, twin sterndrives, or shallow sterns. By mounting externally, it minimizes interior footprint and drastically simplifies the installation process.
-
Hydrodynamically Optimized Housing: The rugged, composite external cowl is meticulously engineered to minimize drag while underway, maximizing water flow efficiency directly through the thruster tunnel.
-
High-Efficiency 24V Architecture: Designed for modern 24V marine electrical grids, running at 24V ensures the thruster runs cooler, handles sustained loads better, and utilizes lighter wiring runs than 12V alternatives.
-
Twin Q-Prop™ Counter-Rotating Propellers: Outfitted with aerodynamically skewed 5-blade twin propellers that deliver maximum thrust efficiency while cutting down cavitation noise and hull vibration by up to 75%.
-
Intelligent Safety & Protection: Fully ignition-protected (IP) design makes it entirely safe for installation near gasoline engines or fuel vapor zones. Includes electronic overload monitoring and smart thermal protection.
Specifications:
-
Part Number: SXE100/185T-24V
-
Thrust Power: 100 kg (220 lbs) at 21V / 116 kg (255 lbs) at 24V
-
System Voltage: 24V DC
-
Tunnel Diameter: 185 mm (7.3'')
-
Control System: S-Link™ Digital Bus (Variable Speed)
-
Propulsion Type: Twin Counter-Rotating Q-Prop™
Pro Tip: External stern thrusters are a game-changer for boats with limited bilge space or complex rudder setups. Because the SXE100 mounts at the absolute furthest point aft on the transom, it achieves maximum mechanical leverage, making it incredibly effective at pivoting the vessel with less effort.

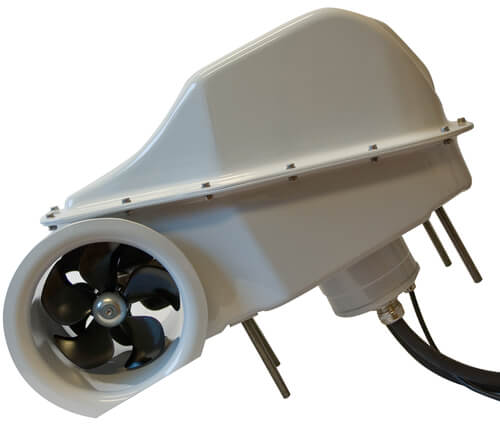

SLEIPNER SXP EXTERNAL STERN THRUSTER | 24V PROPORTIONAL | 100KG/220LB | SXP100/185T-24V
The definitive external transom-mount solution for high-leverage stern control and whisper-quiet docking. The Sleipner Side-Power SXP100 (SXP100/185T-24V) is a heavy-duty, externally mounted stern thruster engineered for motor yachts and sailing vessels where internal space is unavailable or a traditional tunnel cannot be installed. Delivering 100 kg (220 lbs) of robust lateral thrust, this fully sealed system mounts directly to the transom, saving valuable bilge space.
Equipped with factory-standard S-Link™ Proportional Control, the SXP100 upgrades your boat from old-fashioned, full-blast "on/off" thrusters to smooth, variable-speed throttle control. You can smoothly dial in a gentle, quiet nudge for minor adjustments or unlock full power to confidently hold your stern against stiff crosswinds and ripping currents.
Key Features:
-
True Proportional Power (S-Link™): Variable speed capability gives you exact, metered power. It vastly reduces battery consumption and cabin noise by running only at the exact output percentage required.
-
Hermetically Sealed External Pod: The motor, mechanical drive, and internal electronics are housed in a rugged, fully sealed, ignition-protected (IP) composite casing. This makes it completely waterproof and perfectly safe for installation on gasoline-powered boats or near fuel vapor zones.
-
Space-Saving Transom Mount: Eliminates the need to sacrifice valuable internal locker space or modify complex structural components inside the bilge. It mounts cleanly at the absolute furthest point aft, maximizing mechanical leverage.
-
Hydrodynamically Streamlined Cowl: The external housing is carefully sculpted to minimize drag and turbulence while underway, ensuring your cruising speed and fuel efficiency remain unaffected.
-
Twin Q-Prop™ 5-Blade Propellers: Outfitted with aerodynamically skewed composite 5-blade twin propellers that deliver up to a 75% reduction in cavitation noise while maximizing raw water-flow thrust.
-
Intelligent Gear Protection: Integrated smart firmware monitors the system, ensuring smooth power delivery and eliminating mechanical shock from sudden directional shifts.
Specifications:
-
Part Number: SXP100/185T-24V
-
Thrust Power: 100 kg (220 lbs) at 21V / 116 kg (255 lbs) at 24V
-
System Voltage: 24V DC
-
Tunnel Diameter: 185 mm (7.3'')
-
Control System: S-Link™ Digital Bus (Variable Speed)
-
Propulsion Type: Twin Counter-Rotating 5-Blade Q-Prop™
Pro Tip: External stern thrusters provide far superior leverage compared to internal tunnel stern thrusters because they are positioned further away from the boat's center of flotation. This extended distance means the 100 kg of thrust on the SXP100 works significantly harder to swing your stern exactly where you want it.

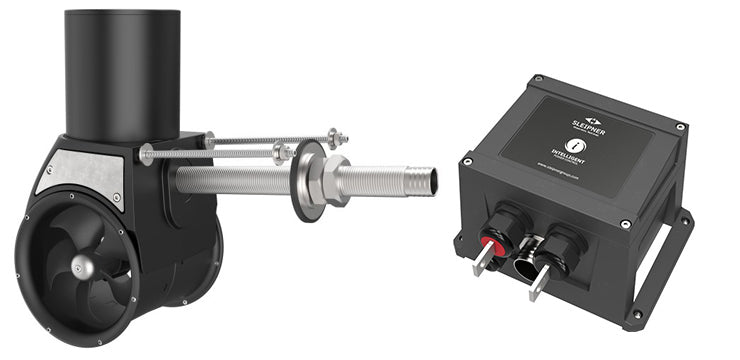

SLEIPNER SX50 EXTERNAL STERN THRUSTER | 12V | 50-62KG THRUST | FOR TRANSOMS UP TO 150MM
The ultimate ultra-compact external stern thruster engineered to fit where standard thrusters won’t—no extensive fiberglass work required. The Sleipner Side-Power SX50 (Model: SX50-150MM-2) is a highly versatile, self-contained external pod thruster designed specifically for motorboats and cruising sailboats from 26 to 37 feet. Outfitted with an extended 150mm (5.9") mounting shaft structure, this model is built to effortlessly pass through extra-thick transoms and deep cored hulls up to 150mm in thickness.
The SX50 packs an immense punch for its ultra-compact size, yielding a reliable 110 lbs (50 kg) of continuous thrust at a 10.5V nominal load, and ramping all the way up to 136 lbs (62 kg) of peak thrust at a full 12V charge.
Key Features:
-
Extended 150mm Transom Capability: Engineered with a specialized long-reach mounting thread layout, this unit securely clamps through deep-cored fiberglass, reinforced transoms, and heavy-timber backings up to 150mm (5.9 inches) thick without requiring hull thinning.
-
No Complex Glasswork / Easy Installation: Eliminates the need for traditional internal fiberglass tunneling. Installation only requires drilling small, clean mounting holes for the securing bolts and the main power cable entry sleeve.
-
Patented Intelligent Power Control (IPC): Sleipner’s advanced microprocessor-controlled safety system provides a protective millisecond delay when switching drive directions to eliminate mechanical drivetrain shock. It actively monitors solenoid function and automatically kills power if a solenoid lock-in is detected.
-
Whisper-Quiet Single Q-Prop™ Propeller: Features a state-of-the-art 5-blade composite skew propeller running inside a highly optimized 140mm (5.5") integrated tunnel. Paired with vibration-absorbing hull connection sleeves, this setup drops cabin noise and stern vibrations by up to 75%.
-
Ignition Protected (ISO 8846) & Hermetically Sealed: Certified under ISO 8846 and UL 1500 standards. All electrical components are isolated inside a watertight composite casing, making it 100% safe to install on gasoline-powered boats or near fuel vapor lockers.
-
Enhanced Hydrodynamic Water Cooling: Because the entire aluminum pod sits completely submerged outside the hull, it benefits from constant, rapid water-jacket cooling, resulting in significantly longer continuous runtimes per cycle than internal DC alternatives.
-
Complete Galvanic Separation: Immersed aluminum and drive components are thoroughly isolated from the vessel's onboard 12V electrical ground network, terminating the threat of stray-current galvanic corrosion.
-
Zero Maintenance Sealed Lubrication: Features a lifetime-lubricated gearhousing running a heavy-duty ceramic-on-carbon mechanical seal face, guaranteeing total protection against saltwater intrusion.
Specifications:
-
Part Number: SX50-150MM-2 (SX50/140-12V-150MM)
-
Thrust Power (at 10.5V Nominal): 50 kg (110 lbs)
-
Thrust Power (at 12V Peak): 62 kg (136 lbs)
-
Motor Output (at 10.5V): 2.8 kW (3.75 HP)
-
Typical Vessel Size Class: 26 to 37 Feet (8 to 11 meters)
-
System Voltage: 12V DC
-
Max Transom/Hull Thickness: Up to 150 mm (5.91'')
-
Internal Tunnel Diameter: 140 mm (5.51'')
-
Nominal Current Draw: 370 Amps
-
Recommended Fuse Size: ANL 325
-
Net Weight: 15.3 kg (33.7 lbs)
-
Propulsion System: Single 5-Blade Q-Prop™
-
Control Signaling Type: Analog Plug-and-Go
Pro Tip: For vessels experiencing heavy water-flow friction at cruising speeds, or for mid-speed sailboats looking to minimize drag to zero, the SX50 can be retrofitted with an optional Hydropod low-drag cowl kit. This seamlessly covers the pod assembly to ensure smooth hydrodynamic tracking while under way.
SLEIPNER SX80/185T-24V EXTERNAL STERN THRUSTER | 24V | TWIN PROPS | 176-212LB THRUST
The perfect external stern thruster solution for boats with restricted internal space, shallow drafts, or narrow transoms. The Sleipner Side-Power SX80/185T-24V is a self-contained, externally mounted pod thruster designed for vessels from 35 to 48 feet. By mounting directly to the outside of the transom, the SX80 eliminates the need for extensive internal hull tunneling, complex fiberglass work, or engine room re-routing, making it an absolute favorite for both quick retrofits and modern, space-limited builds.
The SX80 generates a reliable 176 lbs (80 kg) of thrust at a 21V nominal load, ramping all the way up to 212 lbs (96 kg) of thrust under a full 24V peak load to seamlessly square your stern up against tricky crosscurrents and heavy dockside winds.
Key Features:
-
Hydrodynamic, Space-Saving External Pod: Positioned entirely outside the hull on the transom, the SX80 frees up vital internal storage and engine room volume. Its hydrodynamic casing ensures negligible drag and zero impact on sailing or cruising performance when under way.
-
Patented Intelligent Power Control (IPC): Sleipner's advanced microprocessor-controlled system protects your thruster from mechanical wear and operator error. It enforces a minimal safety delay when switching drive directions, monitors solenoid function, and automatically halts the thruster in the rare event of a solenoid lock-in.
-
Twin Counter-Rotating Q-Prop™ Propellers: Outfitted with dual, 5-blade composite skew propellers spinning in opposite directions. This twin-prop configuration packs maximum thrust density into a narrow 185mm (7.3") integrated tunnel while dropping noise and cavitation vibrations by up to 75%.
-
Ignition Protected (ISO 8846) & Hermetically Sealed: Structurally sealed to meet rigorous ignition protection standards, making it completely safe for installation on the sterns of gasoline-powered vessels, near fuel ventilation paths, or in harsh saltwater environments.
-
Complete Galvanic Separation: The internal drive components and motor elements are entirely isolated from the vessel's onboard electrical grounding system, completely removing the threat of stray-current galvanic corrosion eating away your underwater gear.
-
Zero Maintenance Sealed Lubrication: Features a lifetime-lubricated gearhousing protected by a heavy-duty ceramic-on-carbon mechanical seal interface. This creates a definitive barrier against seawater intrusion, completely eliminating the need for periodic gear oil changes.
Specifications:
-
Part Number: SX80/185T-24V
-
Thrust Power (at 21V Nominal): 80 kg (176 lbs)
-
Thrust Power (at 24V Peak): 96 kg (212 lbs)
-
Motor Output (at 21V): 4.4 kW (5.9 HP)
-
Typical Vessel Size: 35 to 48 Feet (11 to 15 meters)
-
System Voltage: 24V DC
-
Tunnel Inner Diameter: 185 mm (7.28'')
-
Propulsion Type: Twin Counter-Rotating 5-Blade Q-Prop™
-
Certifications: ISO 8846 (Ignition Protected), CE
Installation Advantage: Because the pod sits low on the transom, the SX80 achieves excellent water depth even on shallow-draft boats or vessels with limited transom height, maximizing thrust efficiency and preventing the propellers from sucking air (cavitation). Optional cowls are available to redirect waterflow or shield the unit from sterndrive interference.

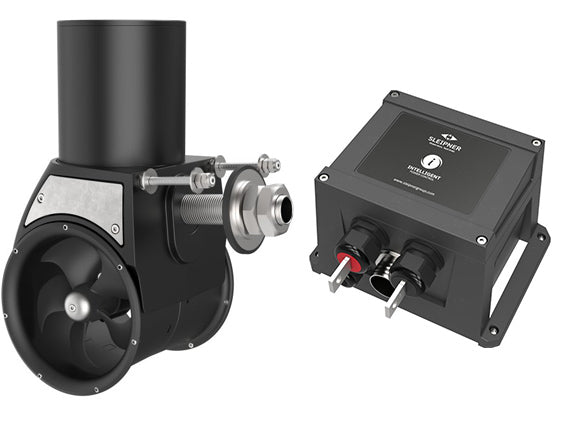

SLEIPNER SX50 EXTERNAL STERN THRUSTER | 12V | 50-62KG THRUST | FOR TRANSOMS UP TO 50MM
The ultimate ultra-compact external stern thruster engineered to fit where standard thrusters won’t—no extensive fiberglass work required. The Sleipner Side-Power SX50 (Model: SX50-50MM-2) is a highly versatile, self-contained external pod thruster designed specifically for motorboats and cruising sailboats from 26 to 37 feet. Outfitted with a streamlined 50mm (1.96") mounting shaft structure, this model is built to effortlessly pass through standard-thickness fiberglass transoms and aluminum hulls up to 50mm in thickness.
The SX50 packs an immense punch for its ultra-compact size, yielding a reliable 110 lbs (50 kg) of continuous thrust at a 10.5V nominal load, and ramping all the way up to 136 lbs (62 kg) of peak thrust at a full 12V charge.
Key Features:
-
Standard 50mm Transom Capability: Engineered with a specialized short-reach mounting thread layout, this unit securely clamps through standard solid-fiberglass, reinforced transoms, and aluminum plates up to 50mm (1.96 inches) thick without adding unnecessary bulk inside the hull.
-
No Complex Glasswork / Easy Installation: Eliminates the need for traditional internal fiberglass tunneling. Installation only requires drilling small, clean mounting holes for the securing bolts and the main power cable entry sleeve.
-
Patented Intelligent Power Control (IPC): Sleipner’s advanced microprocessor-controlled safety system provides a protective millisecond delay when switching drive directions to eliminate mechanical drivetrain shock. It actively monitors solenoid function and automatically kills power if a solenoid lock-in is detected.
-
Whisper-Quiet Single Q-Prop™ Propeller: Features a state-of-the-art 5-blade composite skew propeller running inside a highly optimized 140mm (5.5") integrated tunnel. Paired with vibration-absorbing hull connection sleeves, this setup drops cabin noise and stern vibrations by up to 75%.
-
Ignition Protected (ISO 8846) & Hermetically Sealed: Certified under ISO 8846 and UL 1500 standards. All electrical components are isolated inside a watertight composite casing, making it 100% safe to install on gasoline-powered boats or near fuel vapor lockers.
-
Enhanced Hydrodynamic Water Cooling: Because the entire aluminum pod sits completely submerged outside the hull, it benefits from constant, rapid water-jacket cooling, resulting in significantly longer continuous runtimes per cycle than internal DC alternatives.
-
Complete Galvanic Separation: Immersed aluminum and drive components are thoroughly isolated from the vessel's onboard 12V electrical ground network, terminating the threat of stray-current galvanic corrosion. Includes factory-installed anodes for immediate underwater protection.
-
Zero Maintenance Sealed Lubrication: Features a lifetime-lubricated gearhousing running a heavy-duty ceramic-on-carbon mechanical seal face, guaranteeing total protection against saltwater intrusion.
Specifications:
-
Part Number: SX50-50MM-2 (SX50/140-12V-50MM)
-
Thrust Power (at 10.5V Nominal): 50 kg (110 lbs)
-
Thrust Power (at 12V Peak): 62 kg (136 lbs)
-
Motor Output (at 10.5V): 2.8 kW (3.75 HP)
-
Typical Vessel Size Class: 26 to 37 Feet (8 to 11 meters)
-
System Voltage: 12V DC
-
Max Transom/Hull Thickness: Up to 50 mm (1.96'')
-
Internal Tunnel Diameter: 140 mm (5.51'')
-
Nominal Current Draw: 370 Amps
-
Recommended Fuse Size: ANL 325
-
Net Weight: 15.3 kg (33.7 lbs)
-
Propulsion System: Single 5-Blade Q-Prop™
-
Control Signaling Type: Analog Plug-and-Go
Pro Tip: For vessels experiencing heavy water-flow friction at cruising speeds, or for mid-speed sailboats looking to minimize drag to zero, the SX50 can be retrofitted with an optional Hydropod low-drag cowl kit. This seamlessly covers the pod assembly to ensure smooth hydrodynamic tracking while under way.
