V4/C4 Motor Gearbox - 24V

Electric and hydraulic motor gearboxes to suit Lewmar's windlass models V4/V5 and Lewmar's Capstan C4/C5.

V700 Vertical Windlass Kit - 12V

With 100%  316 stainless steel housing and a sleek flush-mount design that hides the motor down below, the V700 is one of the most attractive and durable windlasses on the market.  It works at the push of a button and has two built-in features that make it unique - motor protection and anchor lock.

The V700 comes with a gypsy able to accept 1/4 inch chains.

Features:

• For rope, chain, or combination rodes
• Built-in motor protection and fail-safe anchor lock
• Easy installation
• Fast line speed
• Manual recovery option
• Impact-resistant cover

Technical Specifications:

• Material - Stainless Steel
• Maximum Pull - 700lbs
• Maximum Line Speed - 82'/min
• Maximum Chain Size - 1/4"
• Maximum Rope Size - 1/2"
• Power - 12 V
• Maximum Boat Length - 35'
• Mounting Position - Vertical
• Weight - 14lbs

In the Box:

• Windlass
• Switch
• Dual direction contactor/solenoid
• Circuit breaker
• Instruction manual

*Sold as an Individual

Specifications:

• Chain - Diameter (Inches): .25
• Freefall: Yes
• Rope Diameter (Inches): .5
• Vertical/Horizontal: Vertical
• Box Dimensions: 8"H x 11"W x 12"L WT: 20 lbs
• UPC: 743683302930

Pro-Series Horizontal 700 Windlass Kit - 12V

Praised by professionals worldwide, the horizontal Pro-Series is a shining example of Lewmar's commitment to providing quality products for boats. It's DIY-ready, easy to install, and housed in 100% 316 stainless steel, making it well protected and durable and with push-button control and a built-in manual emergency recovery system.

Anchoring has never been easier.

Features:

• Powerful motor providing fast line speed
• Manual emergency recovery equipped
• Convenient above-deck installation

Technical Specifications:

• Material - Stainless Steel
• Maximum Pull - 700lbs
• Maximum Line Speed - 82'/min
• Maximum Chain Size - 1/4"
• Maximum Rope Size - 1/2"
• Power - 12 V
• Maximum Boat Length - 32'
• Mounting Position - Horizontal

In the Box:

• Windlass
• Switch
• Circuit breaker
• Dual direction contactor/solenoid
• Instruction manual

*Sold as an Individual

Specifications:

• Chain - Diameter (Inches): .25
• Freefall: Yes
• Rope Diameter (Inches): .5
• Vertical/Horizontal: Horizontal
• Box Dimensions: 9"H x 11"W x 12"L WT: 30 lbs
• UPC: 743683306488

1504 - 360 Panel - ELCI + 5 Position 120V AC Flat Rocker with M2 AC Multimeter

Part of the Blue Sea Systems Battery Management Panels.  This one standard panel features Equipment Leakage Circuit Interrupter (ELCI) protection with branch breakers and will reduce the risk of fire and shock hazards caused by defects in appliances and circuit wiring.

Features:

• Provides Main circuit protection with branch circuits
• Green ON indicating LEDs
• Backlit label positions

Technical Specifications:

• Positions - Five (5) + ELCI
• Amperage - 30A AC trip reference
• Actuator Style - Flat Rocker
• Meter - M2 AC Multimeter
• Nominal Voltage - 120V
• Circuit Breaker Type - A-Series: 5 Branch (15A) and ELCI Main (30A)
• Leakage Trip Amps - 30mA
• Dimensions (H x W x D) - 10.75" x 4.88" x 3.99" (273 x 124 x 101mm)

In the Box:

• 1504 Panel
• Instruction Manual

*Sold as an Individual

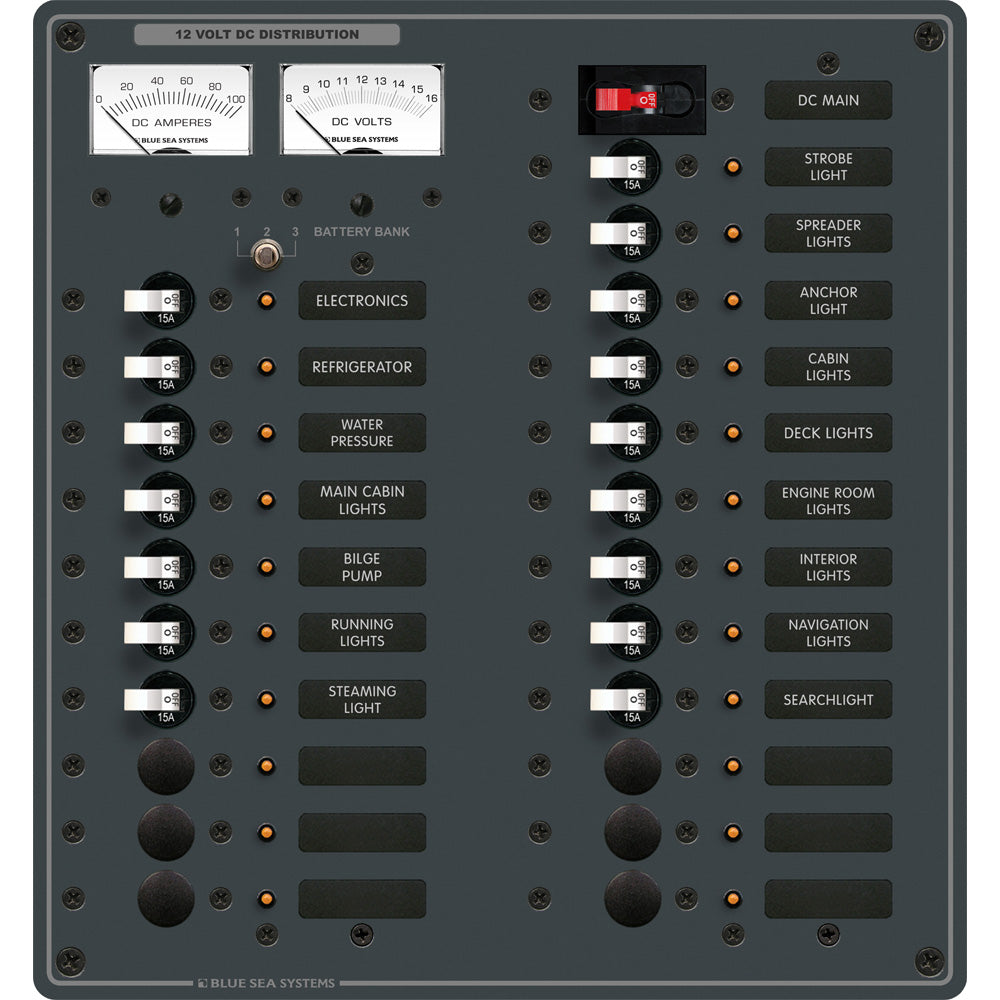

Main + 22 Positions

• All positive, negative and grounding buses installed, fully pre-wired

• Panels with meters include toggle switch for mounting up to 3 battery banks

• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Panel Labels

• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Max Breaker Quantity: 22
• AC/DC: DC
• Voltage: 12v
• Box Dimensions: 7"H x 14"W x 22"L WT: 8.3 lbs
• UPC: 632085083809

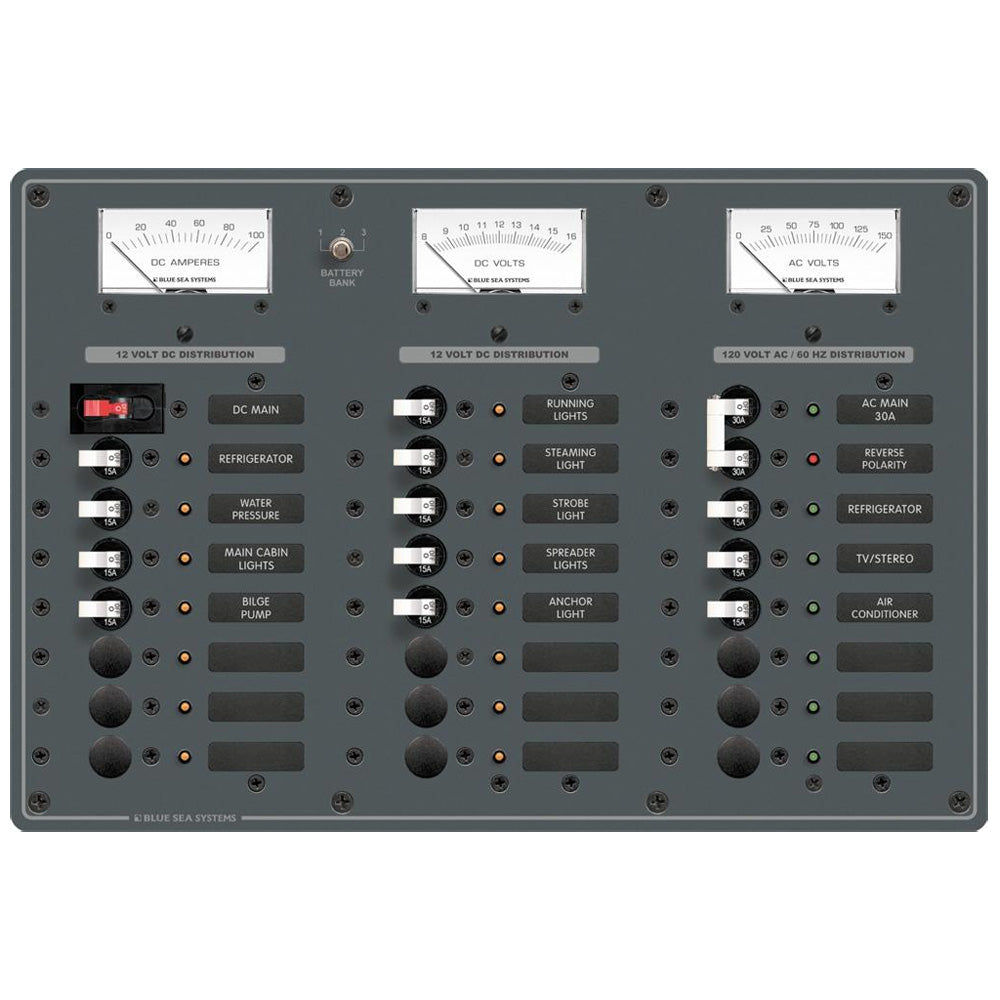

8184 AC Main + 6 Positions/DC Main +15 Positions

Switches Color: White

Features:

• All AC and DC buses installed and fully pre-wired
• Label backlighting pre-installed
• ON - indicating LEDs installed in all circuit positions
• 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch

Specifications:

• Positions: 6 AC / 15 DC
• Nominal Voltage: 230v AC / 12v DC
• Height: 10"
• Width: 14.75"
• Depth: 3"

Included:

• (3) 7299 A-Series White Toggle Circuit Breaker - Single Pole 8A (AC Branch)
• (1) 7294 A-Series White Toggle Circuit Breaker - Double Pole 16A (AC Main)
• (1) 9354 AC Voltmeter - 0 to 250v AC (AC Meter)
• (9) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A (DC Branch)
• (1) 7250i Circuit Breaker CA1 100A Red IP (DC Main)
• (1) 8017 DC Analog Ammeter - 0 to 100A w/ Shunt (DC Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Max Breaker Quantity: 6 AC / 15 DC
• AC/DC: Both
• Voltage: 230v/12v
• Box Dimensions: 3"H x 7"W x 15"L WT: 8.9 lbs
• UPC: 632085081843

8084 AC Main +6 Positions/DC Main +15 Positions Toggle Circuit Breaker Panel - White Switches

Features:

• Includes set of 30 common AC and 30 common DC labels
• All AC and DC buses installed, fully pre-wired
• Label backlighting pre-installed
• All LEDs installed
• Maximum panel Amperage: 100 Amperes DC / 50 Amperes AC

AC Features:

• Red reverse polarity indicating LED
• Ready for installation of optional 4029 AC Isolation Cover
• 9353, 0-150 Volt AC Voltmeter

DC Features:

• 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
• 8003, 8-16 Volt DC Voltmeter
• 8017, 0-100 Amp DC Ammeter
• Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter

Specifications:

• AC Positions: Main +6
• DC Positions: Main +15
• 120 Volts AC
• 12 Volts DC
• (1) 30A - (3) 15A AC Circuit Breakers
• (1) 100A - (9) 15A DC Circuit Breakers

*Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Max Breaker Quantity: 6 AC / 15 DC
• AC/DC: Both
• Voltage: 120v/12v
• Box Dimensions: 7"H x 15"W x 23"L WT: 8.6 lbs
• UPC: 632085080846

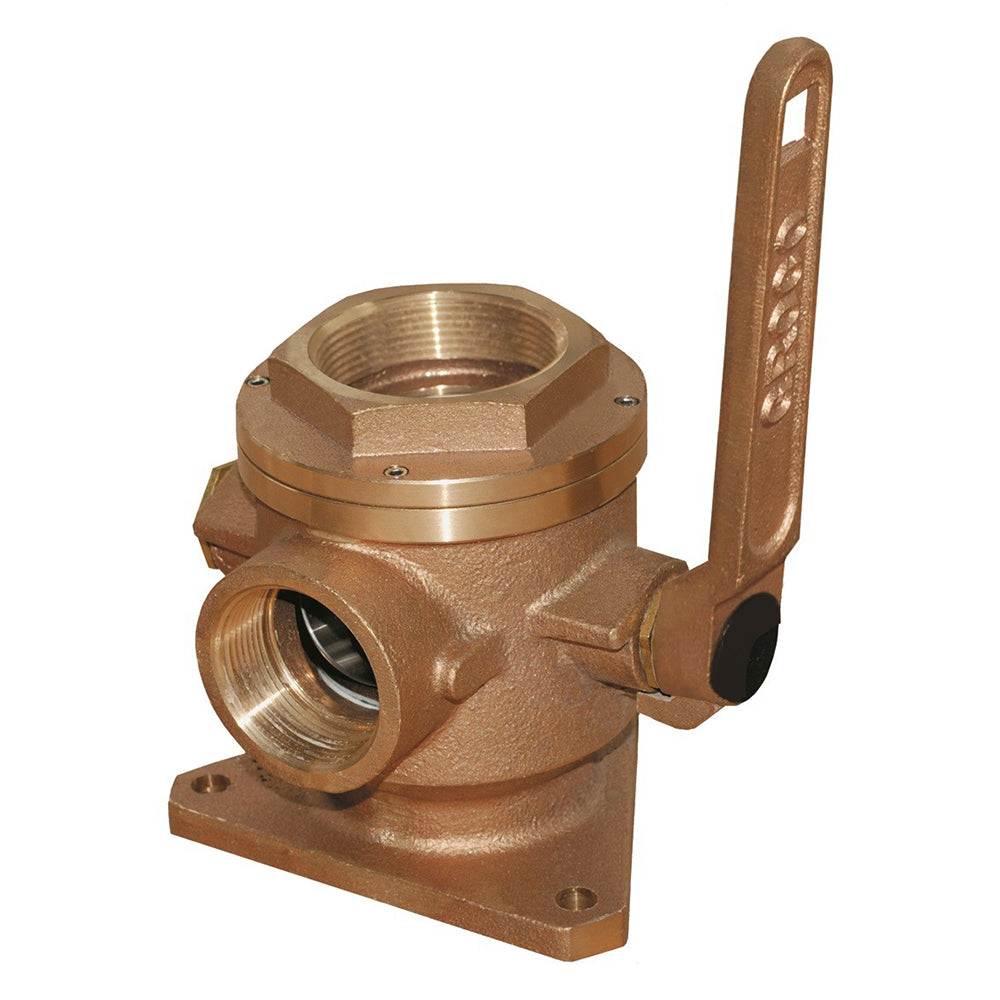

2-1/2" Safety Seacock w/2" Side Port

Features:

• Two driver ports permit handle relocation.
• NPT threaded side port accepts SSCV or any NPT threaded accessory.
• Handle has square hole that accepts standard ratchet; helps access hard-to-reach valves, or ease actuation of hard-to-operate valves.
• Full flow.
• Serviceable while installed.
• C84400 bronze construction.
• Stainless steel ball and stem.
• Base has bonding attachment.
• PTFE seats and seals.

  ***Add a GROCO Bilge Strainer to pump out remote bilge locations.
